The full servo model is designed and manufactured based on the traditional model (chain gear transmission structure). He not only inherits the stable operation of traditional models, but also greatly improves the advantages of speed, accuracy and quality, all thanks to the 13 full servo motors of the whole machine. They are in charge of controlling the suction paper, flipping the cup, the top cup and other movements, which are easy to operate and quickly identify and solve faults.

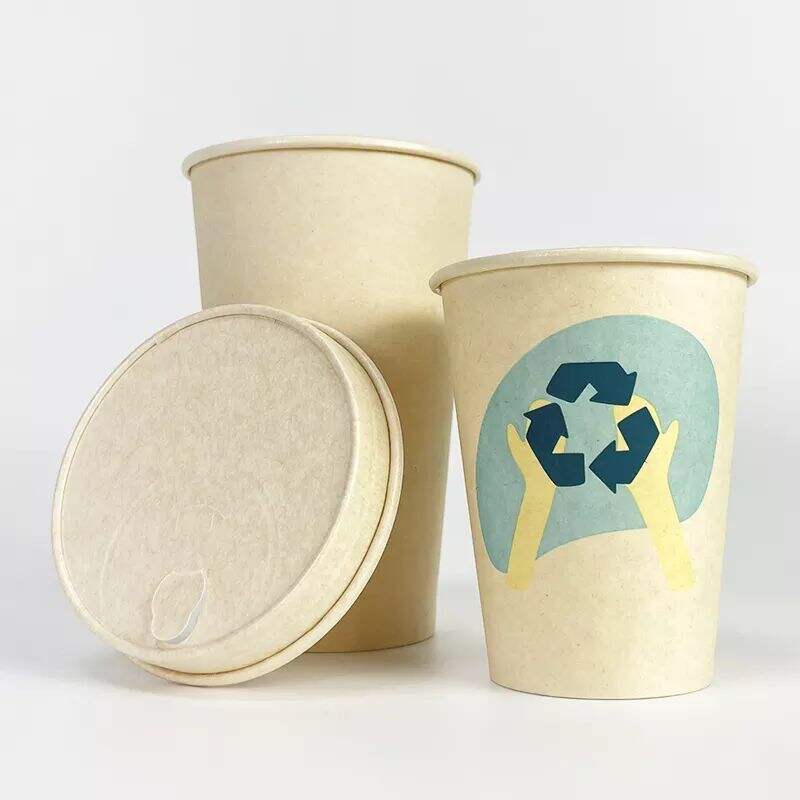

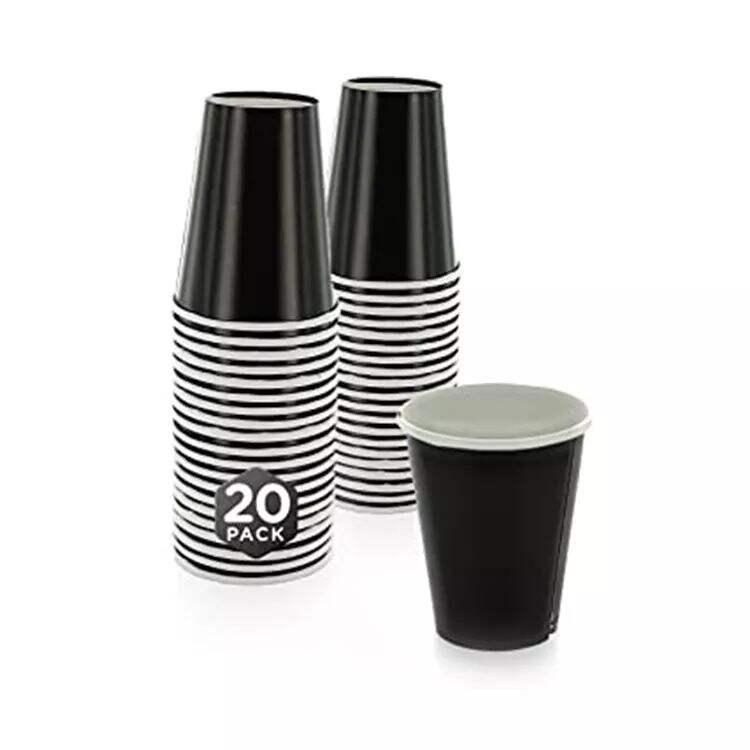

Cup samples:

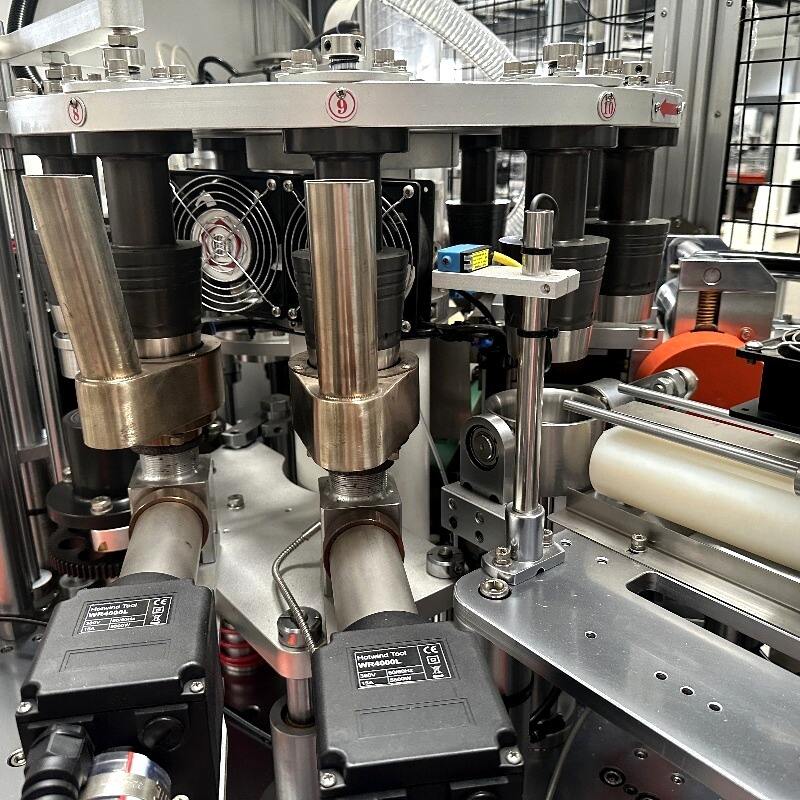

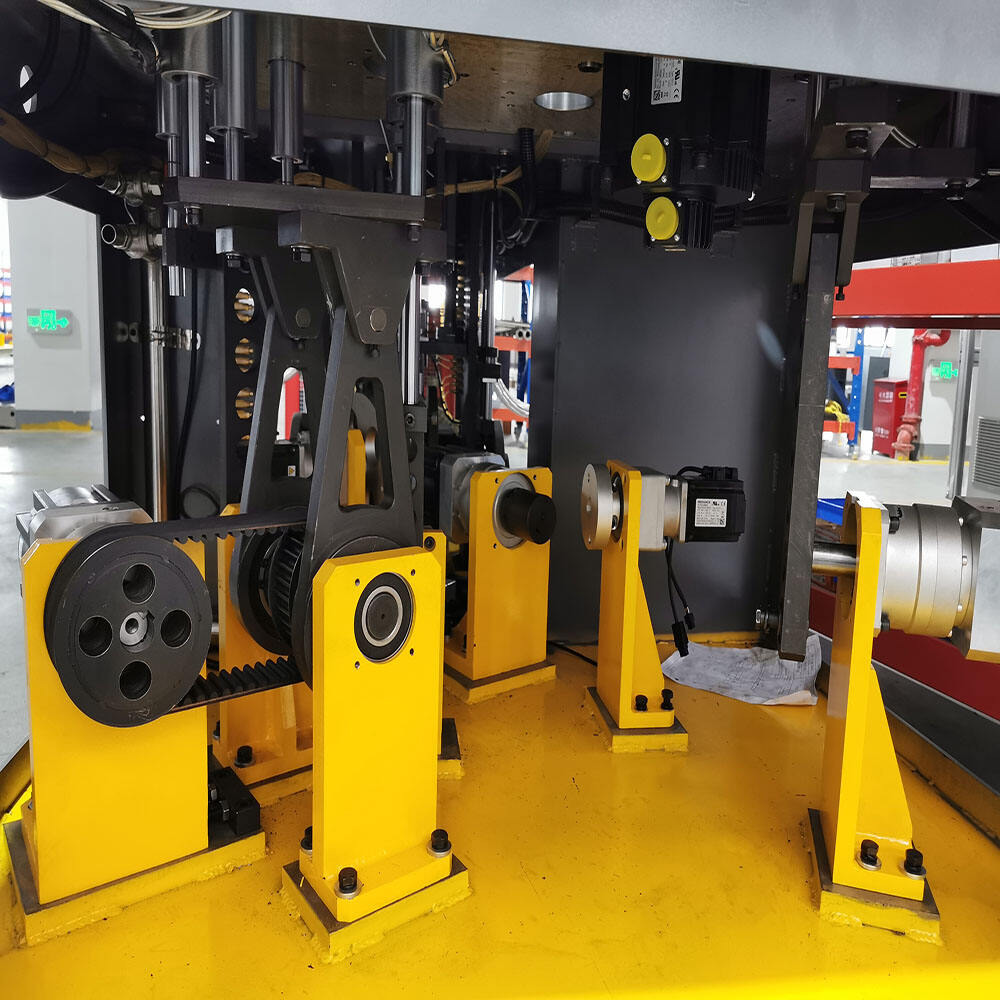

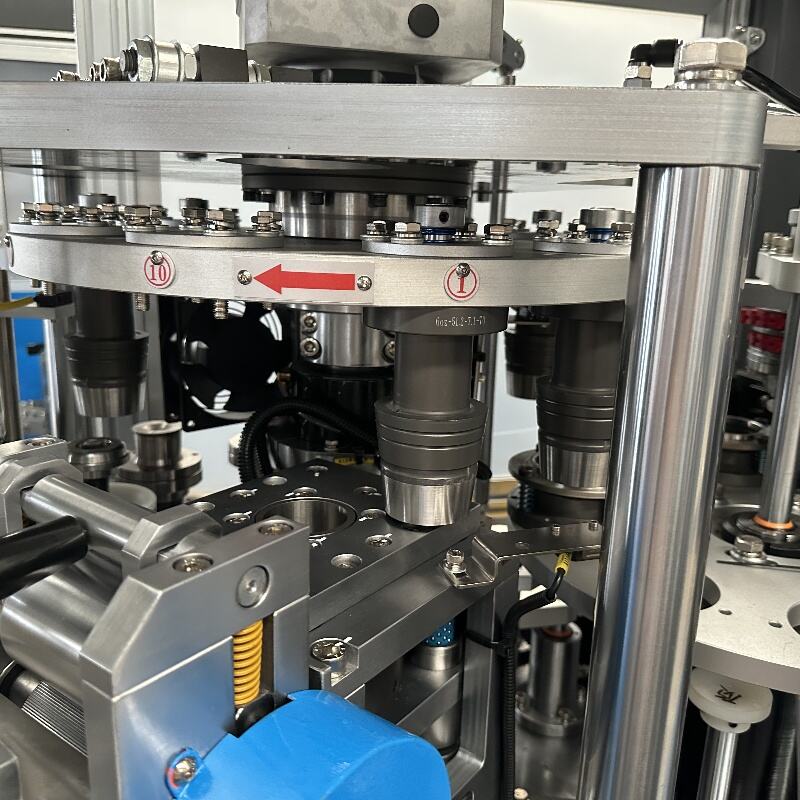

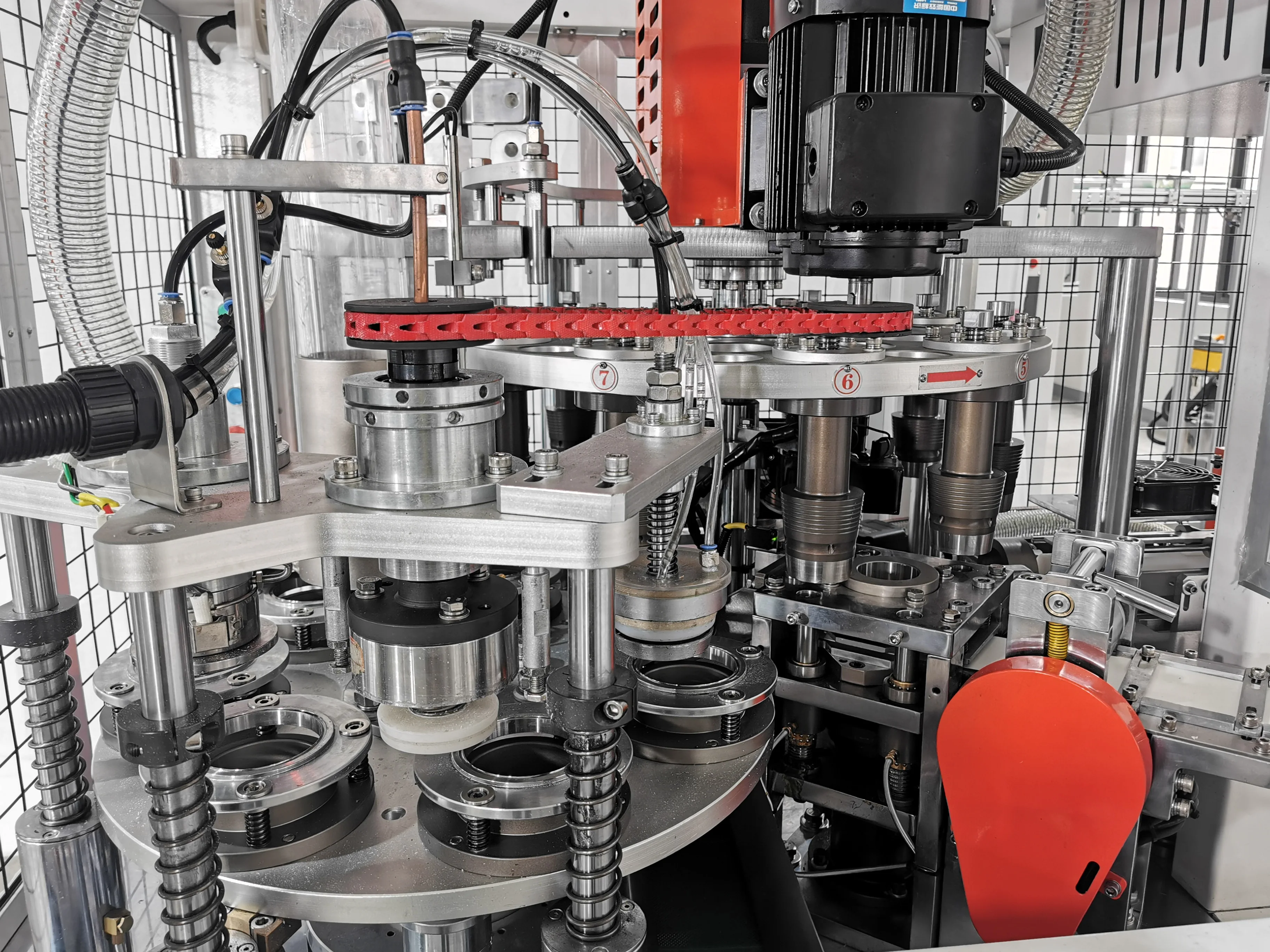

Machine details:
Technical Parameter:
Model |
16S Servo |
Suitable size |
Top diameter:60-95mm Bottom diameter:40-75mm Height:50-135mm Depth from bottom:5-12mm Suit Cup Size: 4-16 OZ |
|
Speed |
120-150 pcs/min |
Paper request |
170-380gsm single/double PE paper |
Weight |
3500kgs |
Size(L*W*H) |
4000*1500*2060mm |
Power |
3 phase,380V,50HZ 35KW |
Air consumpion |
0.6-0.8m³/min |
