16T high speed paper cup machine,using tabletop layout, which isolates the forming parts and transmission parts. All transmission part use longitudinal shaft, barrel indexing cam and gear transmission.All transmission components are lubricated by spray.Machine is controlled by PLC, the whole process is monitored by photoelectric sensors,feeding by servo. Visual inspection system is an option to get rid of disqualified cups. It is suitable for producing 4-16 OZ, cold and hot drink cups.

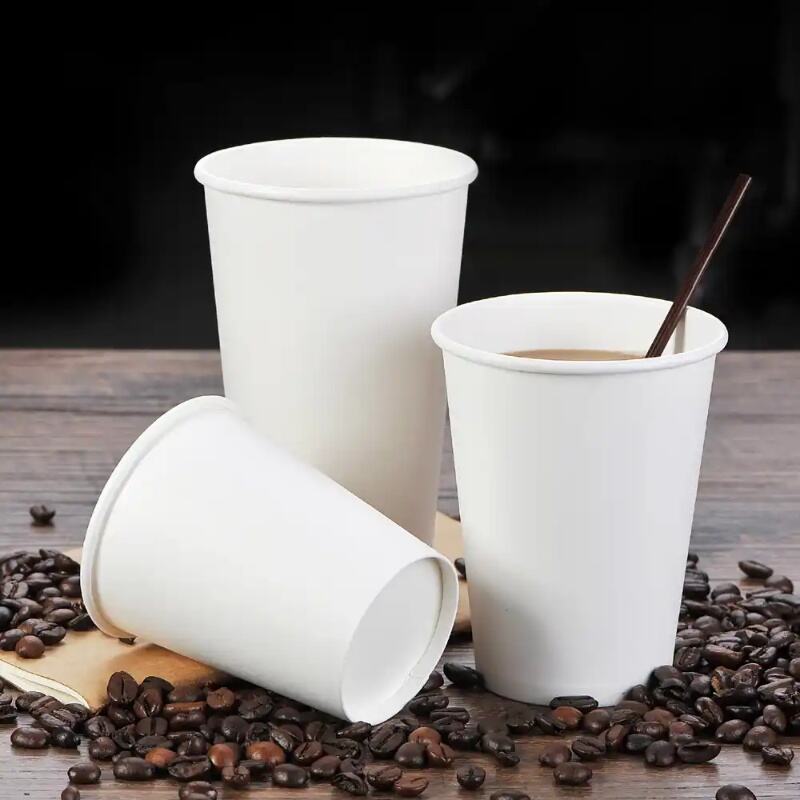

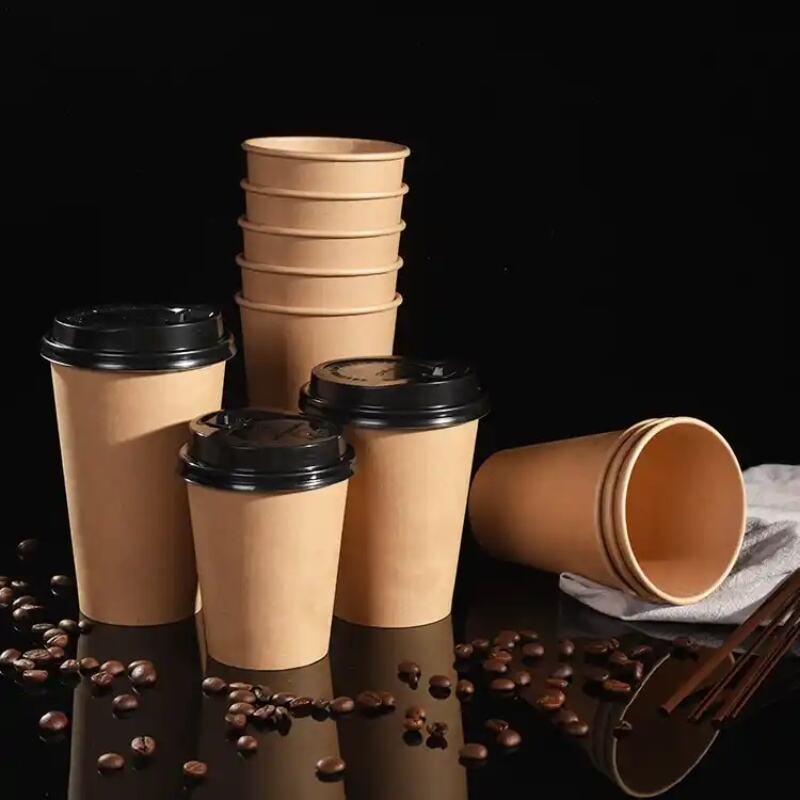

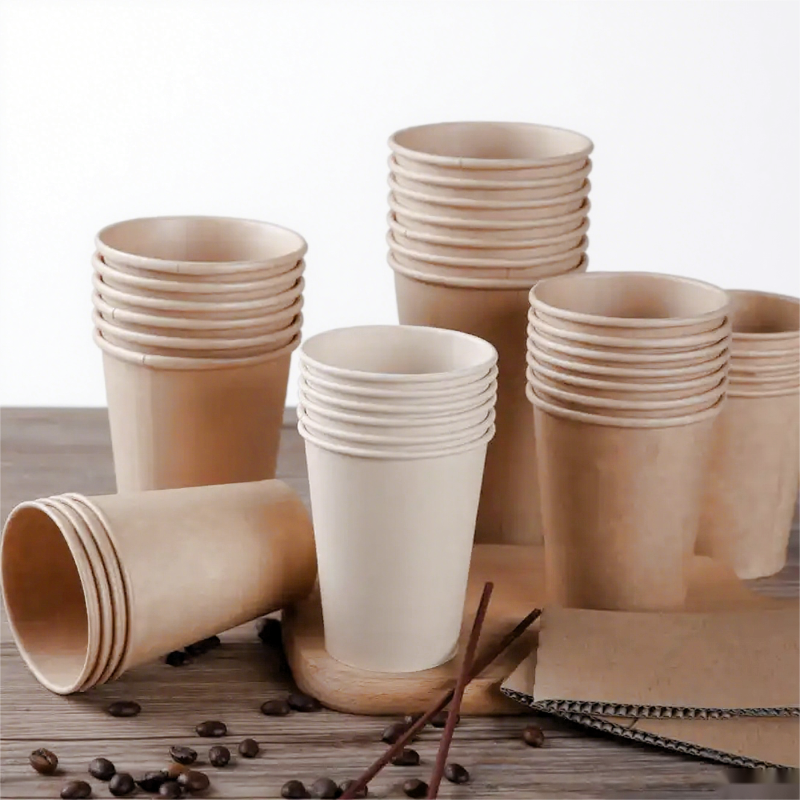

Cup samples:

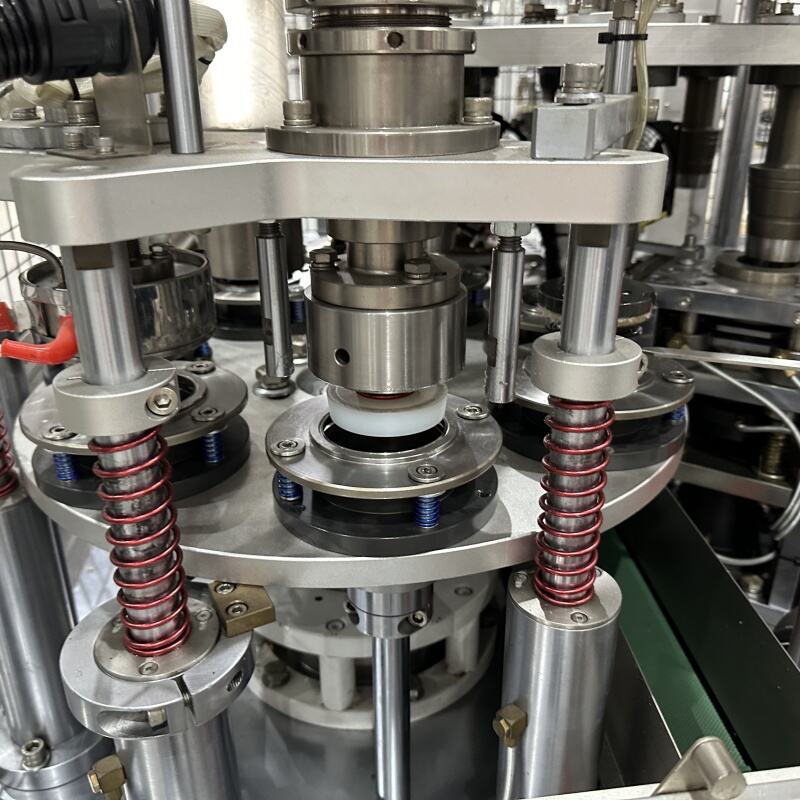

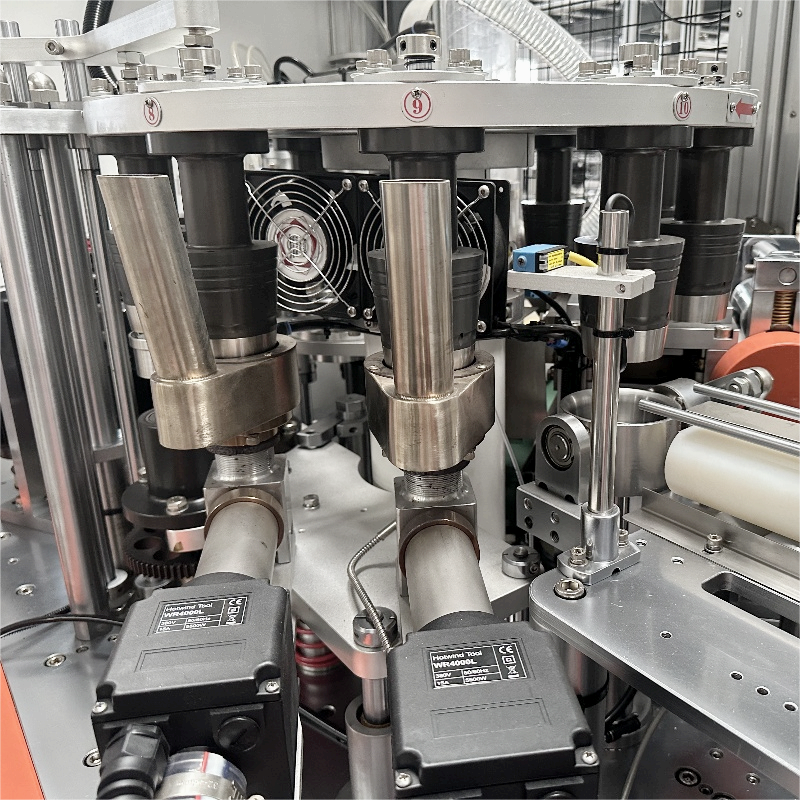

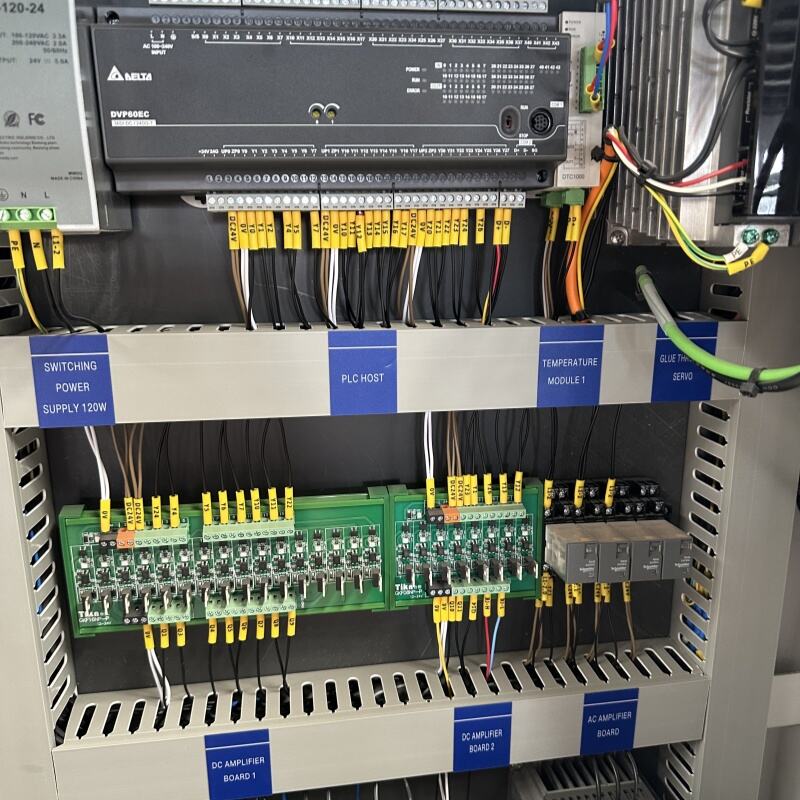

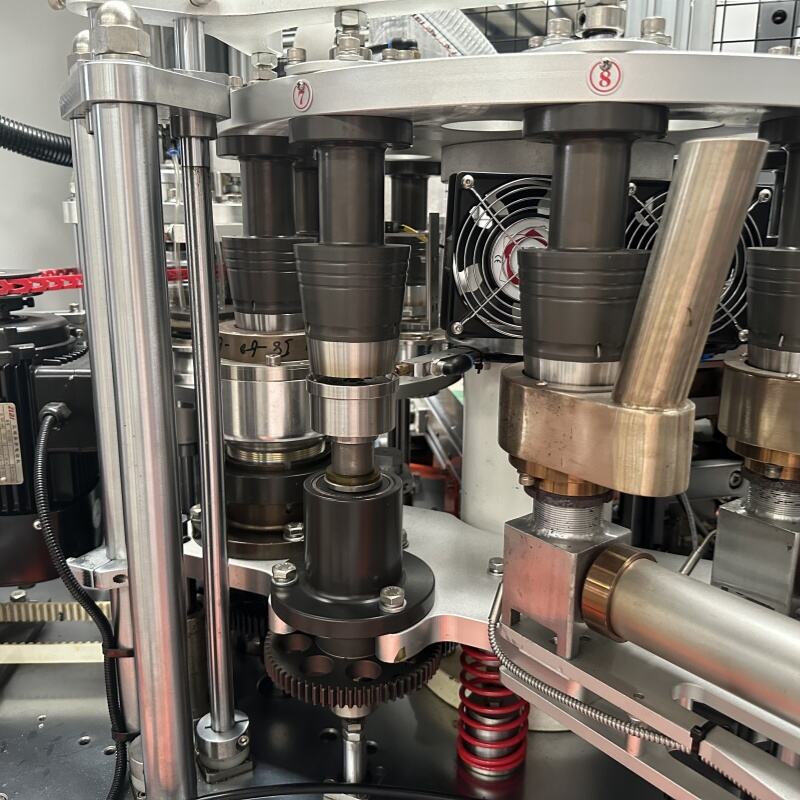

Machine details:
Technical Parameter:
Model |
16T |
Suitable size |
Top diameter:60-95mm Bottom diameter:40-75mm Height:50-135mm Depth from bottom:5-12mm Suit Cup Size: 4-16 OZ |
|
Speed |
100-140 pcs/min |
Paper request |
150-380gsm single/double PE paper |
Weight |
3600kgs |
Size(L*W*H) |
3000*1400*2060mm |
Power |
3 phase,380V,50HZ 21KW |
Air consumpion |
0.6-0.8m³/min |
